电池组用了几年,容量下降,可以继续并联新电池组吗?

  • 来源:睿禹能电池并联-发布时间:2023-05-09

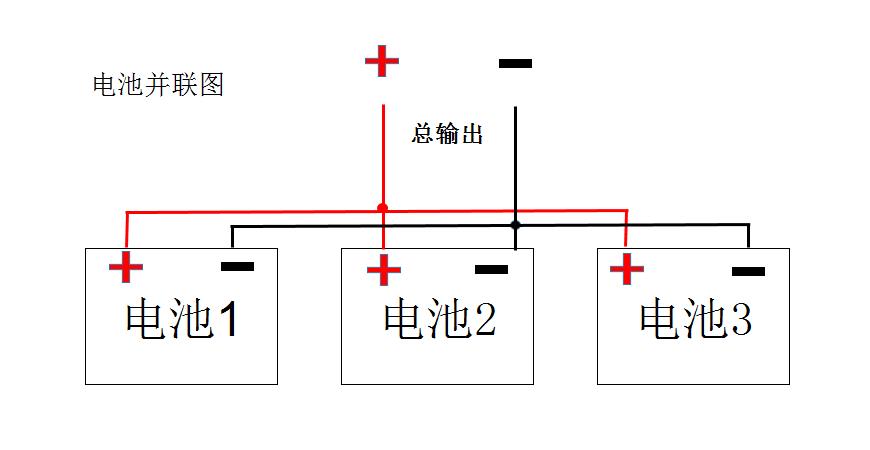

电池组之间是可以并联与串联的,并联可以增加电池的容量,从而可以把旧电池组进行容量并联升级,以达到使用需求,但不是所有的电池组都具有并联的功能,这需要你的电池组本身都具有并联系统,假如没有的话,会导到以下各类问题。

1. 电性能差异:不同品牌、型号或者使用时间较长的电池组之间存在电性能的差异。在进行并联时,这些差异将会被放大,导致电池充放电不平衡,影响电池的寿命和可靠性。

2. 容量不匹配:不同电池组的容量也可能存在差异,因此如果进行并联,容量较小的电池组可能会先达到放电截止电压,从而影响电路的工作效率和安全性。

3. 充放电特性不同:不同电池组的充放电特性也有所差异,在进行并联时,这些特性不同可能会导致电池充放电过程不平衡,出现电压不稳定、温度异常等故障。
电池组用了几年,容量下降,可以继续并联新电池组吗?


不同类型规格的电池并联会引起大电流

这是因为在电池组内部,电池之间存在一定的内阻和极化等差异,当处于充电状态时,电压高的电池将会向电压低的电池放电,从而使得整个电路产生大电流。

举例来说,假设有两个电池组A和B,其中A组电压为48V,B组电压为32V,如果将它们进行并联,由于B组电压低于A组,A组将会向B组放电,而且电池本身内阻无限小,此时电流将会异常大,可以达到上百安甚至上千安,非常危险,同时,两个不同电压会进行闭环环互相充电,处于短路状况,如果这种情况持续下去,可能会导致电池寿命缩短,电池性能下降甚至故障或事故。


因此,在进行电池组并联时应当选择相同品牌、规格、容量以及已经使用了相近时间的电池组,并且进行严格的测试和管理,以确保电池组的安全性和可靠性。同时,在并联电池组中应当采用均衡充电或者电池管理系统,并联模块等措施,以保证每个电池的充放电状态均衡,避免出现互相充电的情况。

 英文版本:
Battery packs can be connected in parallel or series. Parallel connection increases the capacity of the battery pack, allowing old battery packs to be upgraded by parallel connection to meet usage demands. However, not all battery packs have parallel connection capabilities and this requires that your battery pack itself has a parallel system. If it does not, it may lead to various issues.
1. Performance differences: There are differences in electrical performance between different brands, models, or older battery packs. When connected in parallel, these differences will be amplified, causing an imbalance in battery charging and discharging, affecting battery life and reliability.
2. Capacity mismatch: Different battery packs may also have differences in capacity. Therefore, if they are connected in parallel, the battery pack with smaller capacity may reach the cut-off voltage first, affecting circuit efficiency and safety.
3. Different charge and discharge characteristics: Different battery packs also have varying charge and discharge characteristics. When connected in parallel, these different characteristics may cause an imbalance in battery charging and discharging, resulting in unstable voltage, abnormal temperature, and other faults.
Connecting different types and specifications of batteries in parallel can cause a large current surge because there are differences in internal resistance and polarization between batteries within the battery pack. When in a charging state, the high voltage battery will discharge towards the low voltage battery, causing an abnormally high current flow. This can be dangerous as currents can exceed hundreds or even thousands of amps, leading to shorter battery life, decreased performance, or even accidents.
Therefore, when connecting battery packs in parallel, it is important to choose the same brand, specifications, capacity, and battery packs that have been used for similar amounts of time, and conduct strict testing and management to ensure the safety and reliability of the battery pack. At the same time, balanced charging, battery management systems, parallel modules, and other measures should be used to ensure that the charging and discharging status of each battery is balanced and to avoid situations where batteries are charged in parallel with each other.
